α Alumina Ceramic Tile Lining for Wear or Abrasion Reistant Use

Overview

Basic Info.

Samples	Free Samples Can Be Provided
Density	3.6, 3.65,3.7,3.83,4.10, 5.9 g/cm3
Content	92% Alumina, 95% Alumina, T95,Zta
MOQ	50kg
Compressive Strength	More Than 1050 MPa...
Service	Reply Within 1 Hours
Capacity	18000 Tons
Lab	We Have Our Own Lab
Market	Australia, USA, South Africa,Russia, Turkey ....
Color	White
Factory	ISO Certificate Factory
Transport Package	Safe Carton with Pallet
Specification	150*100*25 and so on.
Trademark	Ultraming
Origin	China, Zibo City
HS Code	6909120000
Production Capacity	18000 Tons/Years

Product Description

α Alumina Ceramic Tile Lining for Wear or Abrasion reistant use
Brief Introduction

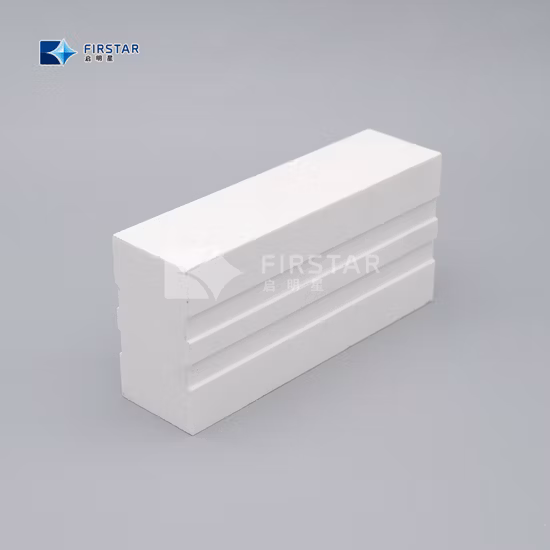

QMX Alumina Ceramic Tile Linings are designed as per the requirements of the customers' engineering combined with the cost, installation and effective of application. Especially the blocks with tongues and grooves, Its obvious performance is that they could lock each other due to the tongues and grooves to increase the connectivity in whole engineering. So it is used widely in pipe lining, ceramic rubber plate in mining industry, steel plant, cement plant, port, power plant,etc.
Meanwhile QMX ceramic blocks usually vulcanized with rubber, made as the ceramic rubber and steel composition ceramic liner.
>>> Reputation & Experience for Quality
QMX served industrial maintenance company for 25years, we earned good reputation by our believable products and sincere service , Qimingxing CERAMICS are the wear resistant ceramics of choice for a large variety of industries including mining, sand and gravel, coal handling, steel production, and more.
>>> QMX Ceramic Advantage
Afford the standard and pre-engineered tiles
Professional technical team to afford CAD designs
Professional installation team to afford install service
Well established process as per international standards
Technical Data for Ceramics

Item Name	HC92	HC95	HCT95	HC99	ZTA
Density g/cm3	≥3.60	≥3.65	≥3.70	≥3.83	≥4.15
Al2O3	≥92%	≥95%	≥95%	≥99%	≥75
Bending Strength Mpa	≥220	≥250	≥300	≥330	≥400
Compression Strength Mpa	≥1050	≥1300	≥1600	≥1800	≥2000
Fracture Toughness KIc(Mpa.m1/2)	≥3.7	≥3.8	≥4.0	≥4.2	≥5.0
Vickers Hardness HV20	≥950	≥1000	≥1100	≥1200	≥1350
Wearing Volume cm3	less than 0.25	less than 0.2	less than 0.15	less than0.10	less than 0.05

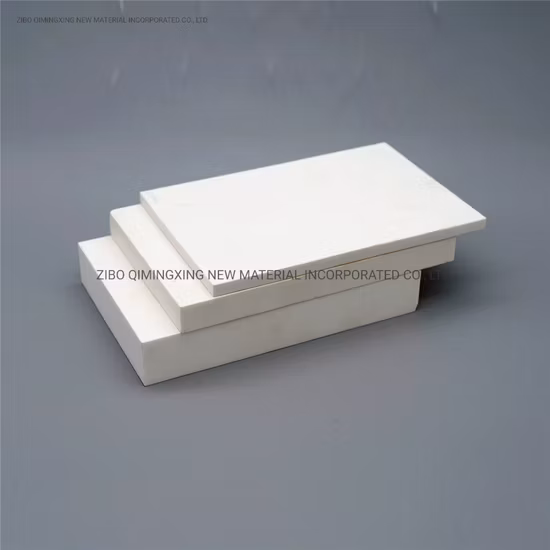

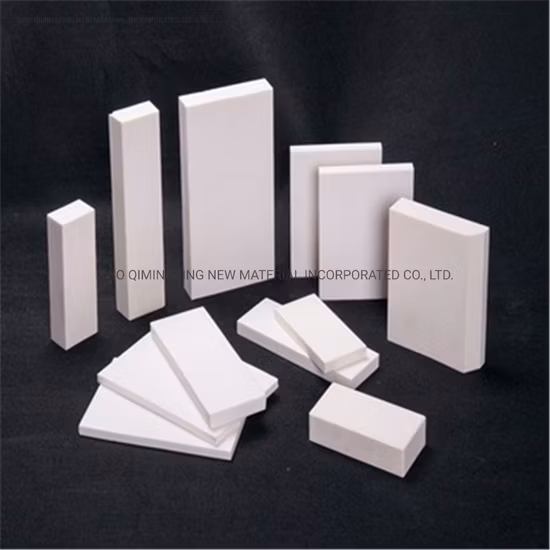

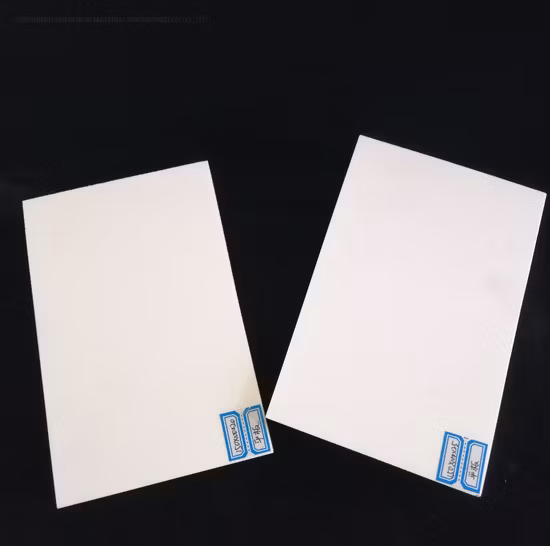

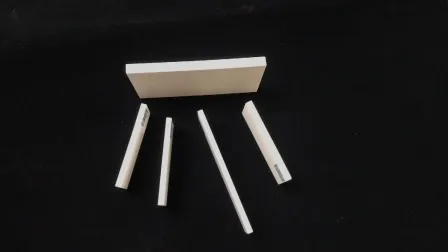

Images of ceramic lining plate


>>> QMX Wear Resistant Materials Application
Copper Mining Processing
• Mill Feed Throats
• Underflow Tub Liners
• Material Handling Chutes
• Cyclone Feed/Discharge Piping/Chute
Coal Preparation
• Cyclone Distributors
• Cyclone Liners
• Magnetic Separator Chutes
• Impact Panels
• Sieve Bend Feed Boxes
• Pipe Lining/Elbows
Cement Industry
• Chutes
• Cyclone Separators
• Cones
Ceramic tiles have excellent abrasion and wear resistant qualities and are ideal for use in transfer chutes, piping systems, hoppers, etc with extreme operating conditions involving high drop heights, extreme velocities and severe abrasion. Typical markets include grain, coal-fired power generation, mining, cement, and more. Ceramic tiles are adhered to a substrate with cement, mortar, epoxy, or RTV silicone.

Company Profile

FAQ

Zibo Qimingxing New Material Incorporated Co., Ltd has been founded in 1997 and covered the area of 160mu,having more than 260 staffs in which the technical staffs account for 35%. The company has set up their wholly owned subsidiary, Shandong Ultraming Fine Ceramics Co., Ltd, Shandong Yilaisheng New Material Co., Ltd, Zibo Xingao New Material Research Institute Co., Ltd. The annual production of wear resistant ceramic and grinding media is 18000 tons. Our factory passed the ISO 9001:2015 standard quality management system certificate and successfully listed on the new OTC market in January 2017. The stock code is 870601.

Our products are also exported to many courtries and build long-term business relationship with customers.
Every year we also go to many exhibitions all over the world.
FAQ
1.Are you a direct manufacturer or trader?
We has been founded on 1997 and now has developed into a group company owning three factories, manufacturing alumina powder, alumina grinding media, wear resistant ceramic liner.
Also we have our own vulcanizing plant which manufacture rubber backed ceramic panel.
2.Can you supply samples to check the quality?
Free samples with small quantity can be sent for quality checking.
Express fee can be reduced from bulk order.
3.What is the delivery time?
Most of the rubber backed ceramic panel is customized as customers' application condition. Generally it takes 7~30 days according to the quantity.
4.What is your payment term?
T/T, L/C at sight can be accepted. Also it can be communicated.
5.What is your main markets?
We exported the panels to Australia, Russia, Ukraine, Mongolia, New Zealand, Chile, Peru, South Africa and so on.
6.Can you accept small order?
Yes, orders small or big are from your trust. We will do our best to meet your requirements.
7.Can you receive orders with bulk quantity?
Yes, the production capacity is 18000 tons per year. We have ability to accept the big orders.
8.Can you speak English?
Yes, our staff can speak and write English very well. We can supply 7*24 service and can reply your inquiry within short time.
9. Besides the rubber backed ceramic panel, what other products you manufacture?
We also can manufacture plain ceramic liner, weldable ceramic liner, trapezoidal ceramic liner, curved ceramic liner, ceramic grinding media, ZTA 370/380 grinding media, silicate zirconia grinding media, yttria stabilized zirconium grinding media, ceria zirconium grinding media, alumina powder, yttria zirconium powder and so on.
10.Where are you located?
Our factory is in Zibo city, Shandong province, North of China. Zibo is an famous industrial city in China and we are near Jinan airport. Welcome to visit our factory.
Any inquiries about rubber backed ceramic panel, ceramic embedded rubber panel, ceramic composite panels, plain ceramic liner, weldable ceramic liner, trapezoidal ceramic liner, pipe liner, ceramic mosaic, ceramic cylinder liner, alumina grinding media and so on, pls do not hesitate to contact me for more communication.

Any inquiry pls feel free to contact us for more communication.
Products Scope
Ceramic Liner: plain ceramic liner, weldable ceramic liner, trapezoidal ceramic liner, ceramic cylinder, ceramic block, alumina wear liner, rubber backed ceramic panel, ceramic composite panel, mining wear liner and so on.
Ceramic Grinding Media: 92% alumina media, 95% alumina media, 99% alumina media, ZTA 370 grinding media, ZTA380 grinding media, ZTA 450 grinding media, ZTA 470 grinding media, silicate zirconia grinding media, yttria stablized zirconia grinding media, ceria stablized zirconia grinding media and so on.
